TYK is offering technical solutions to our customers like the TN-A1 Sliding Gate System, the Gas Holder System for the steel ladle or the Flow Rate Detector tool for the flow control of the purging plug during O2 cleaning.

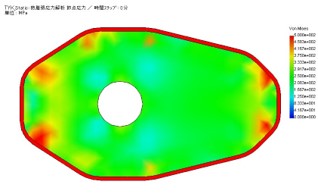

Our TN-A1 sliding gate system is a simple user friendly ladle gate system. We combined and optimized the advantages of different systems in the TN-A1. Today we have 2 versions in use, one with a maximum bore size of 80 mm and one with 100 mm.
TYK has developed a gas tank for the ladle to increase the efficiency and durability of the purging plug. This tank supplies the plug with gas during the moving times of the ladle. This prevents the plug to clog during the treatment times, easier cleaning due to no metal penetration and keeps some stirring during this periods. The result is an increased life of the plug, better restart of blowing after transport and an positive effect for the steel quality.

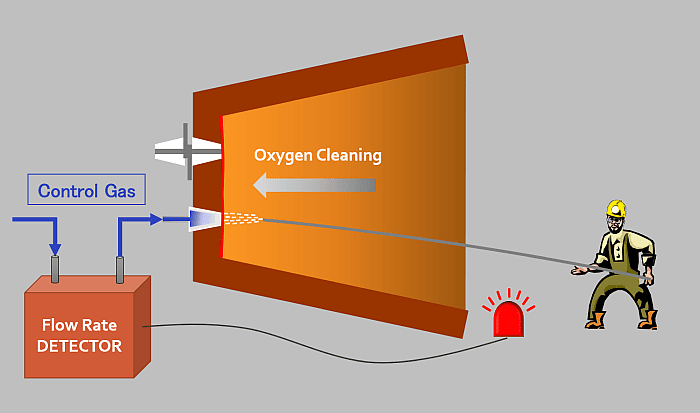

The uncontrolled O2 cleaning of the purging plug leads often to a reduced lifetime of the plug. The use of the „Flow Rate Detector“ can prevent this. The detector indicates the worker that the sufficient flow rate is reached and the cleaning can be stopped. Through this, the lifetime of the plug can be increased significantly.
